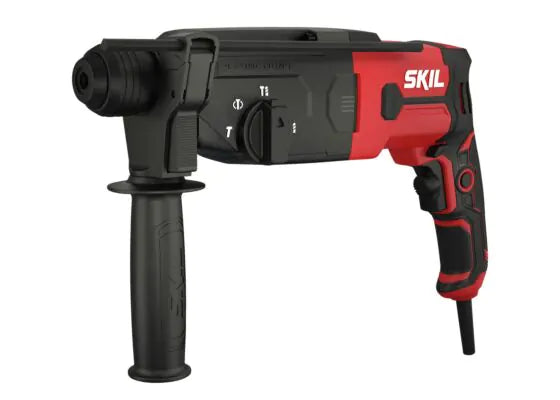

1770 AA SDS DRILL

Pneumatic SDS drill with four functions
The pneumatic four-function SKIL 1770 SDS drill has a powerful 850W motor, a variable speed switch with pre-selection and a lock-on button for optimum control of your concrete drilling jobs up to 26 mm. It has a hammer function for drilling in concrete, a hammer stop function for regular drilling and screwdriving, and a rotation stop function for light chiselling jobs. Last but not least, this drill allows chiselling with free rotation. The ‘SDS+’ system enables fast and easy accessory changing. You can use the forward/reverse trigger to conveniently change the working direction of the tool. The anti-slip soft grip and the adjustable side handle enable comfortable two-handed control. With the handy depth gauge you can set the drilling depth for blind holes.

Features

• Steplessly adjustable side handle for secure two-handed control
• Forward/reverse switch for easily changing the working direction of the tool
• Softgrip for comfortable handling and optimal control
• Speed pre-selection wheel to set the right speed for every job
• Variable-speed switch with lock-on button for continuous work
• Safety clutch offers protection if the bit ever gets jammed
• Ergonomically shaped handgrip for optimal user comfort

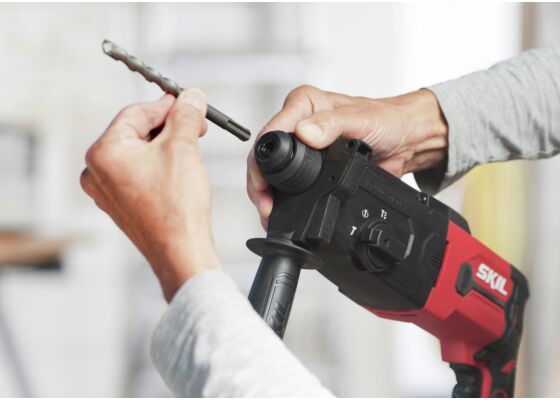

• 'SDS+' system for fast, easy bit changing

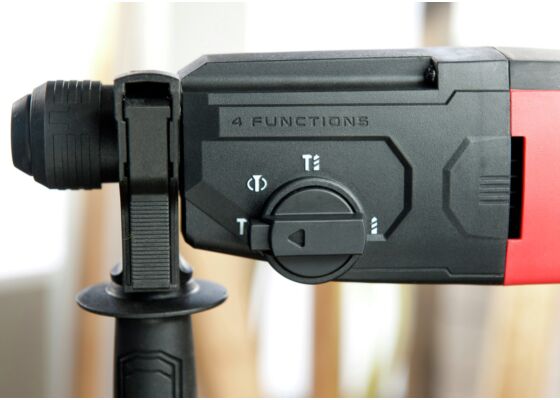

• Four functions: 1. Hammer drilling; 2. Hammer stop for regular drilling; 3. Rotation stop for light chiselling work; 4. Chiselling with free rotation for maximum freedom of movement
• Powerful 850W pneumatic SDS drill for effortlessly drilling in concrete
• Easy-to-adjust depth gauge to preselect drilling depth for blind holes

Specifications

• Input: 850 W
• Impact force: 2.8 J
• Drilling capacity in steel: 13 mm
• Drilling capacity in concrete: 26 mm
• Drilling capacity in wood: 40 mm
• Drilling capacity in wood: 40 mm
• No-load speed: 0-980 r.p.m.
• Maximum impact rate: 5150 /min
• Chuck type: SDS+
• Weight: 3.1 kg
• Voltage/frequency: 220-240V/50-60Hz
